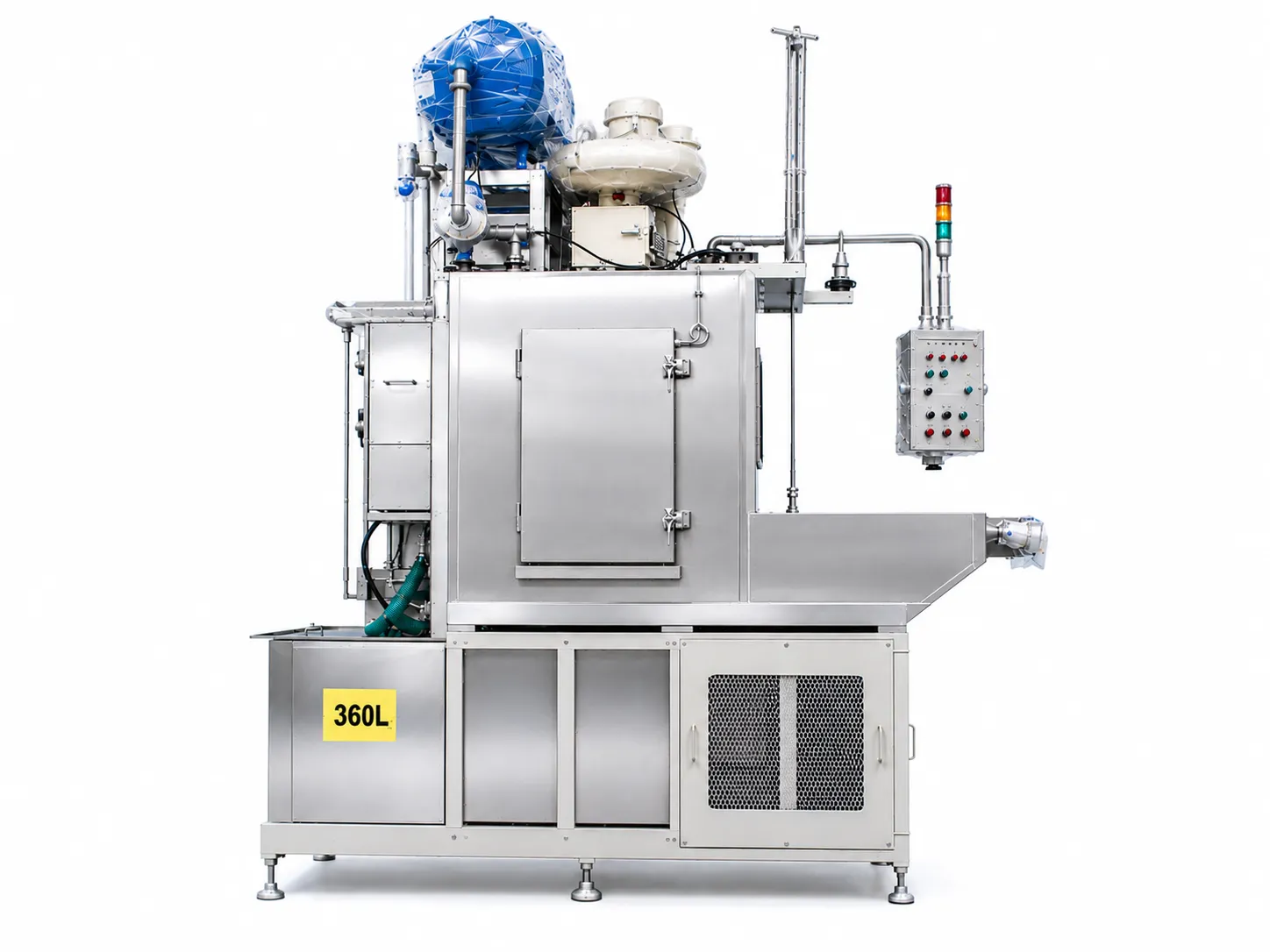

Engine detail washing machine (Model: WM-EP1)

Technical specifications of washing machine and engine details

Operate engine detail washing machine

The engine detail washing machine is designed with an automated cleaning process that combines high-pressure cleaning solution spraying, clean-water rinsing, and air drying. The fixture system rotates the parts during the washing process, ensuring uniform cleaning and improving production efficiency.

Working process of the engine parts washing machine:

Step 1: The engine part is manually loaded into the washing chamber and secured on a dedicated fixture. During operation, the fixture continuously rotates the part, allowing the cleaning solution to reach multiple areas of the product surface evenly.

Step 2: The cleaning solution is circulated through the filtration system and delivered to the spray nozzles at high pressure. The high-pressure flow helps remove grease, oil, dirt, and residues from the part.

Step 3: After the main washing process, the product is rinsed with clean water without chemicals to remove any remaining cleaning solution from the surface.

Step 4: At the end of the cycle, the air blow-off system performs the drying process, removing water and moisture from the product before it is discharged from the machine.

The entire process can be programmed and controlled automatically, ensuring consistent and uniform cleaning results for each product.

Integrated systems of the engine parts washing machine

The engine detail washing machine is equipped with multiple supporting systems to enhance cleaning efficiency, reduce cleaning solution consumption, and optimize the overall operation. From the filtration and recirculation system and rotating fixtures to heating, air drying, and oil mist collection, all mechanisms are designed and integrated to meet industrial production requirements.

Cleaning solution filtration and recirculation system

One of the key components of the machine is the cleaning solution pumping and filtration system. The machine is equipped with a 3-bag filtration system combined with an Oil Skimmer.

During the cleaning process, oil and contaminants are separated from the cleaning solution before the solution is recirculated back to the spraying system. This design helps minimize filter clogging caused by oil, maintain cleaning efficiency, and reduce the amount of cleaning solution that needs to be replaced.

The system is also designed to facilitate filter inspection and replacement. An automatic filter-clogging warning function allows operators to perform timely maintenance and minimize disruptions to production.

Fixture system for uniform engine parts cleaning

The machine can be equipped with a dedicated engine parts washing fixture designed according to the shape and dimensions of the product. During the washing cycle, the fixture securely holds the part while continuously rotating it.

This allows the cleaning solution and air stream to reach multiple areas of the product, including locations that are difficult to clean manually. Automating the rotation of the part also helps reduce direct operator intervention and improve consistency between washing cycles.

The fixture can be customized for different types of products to meet the specific requirements of each production line.

Hot water washing capability

Depending on the process requirements, the engine parts washing machine can be equipped with an additional heating system for hot-water cleaning, with temperatures of up to approximately 70°C, depending on the selected configuration.

Hot water enhances the cleaning performance when removing grease, oil, and other contaminants from the surface of parts. This option is particularly suitable for products with high levels of oil contamination or applications requiring enhanced cleaning performance.

The temperature and heating mode should be selected according to the material of the parts, cleaning solution, and specific technical requirements.

Automatic air drying system

After the washing and rinsing processes are completed, the product proceeds to the drying stage using an air blow-off system. The system uses a high-volume air stream to remove water from the surface and other areas of the product.

Integrating the air-drying process directly into the machine eliminates the need to transfer products to a separate drying system, reducing processing time and manual handling. This is also an effective solution for production lines where parts need to be cleaned and dried before being transferred to the assembly stage.

Oil mist collection system – Mist collector

During the washing process, particularly when using heated cleaning solutions or high-pressure spraying, oil vapor and mist may be generated inside the machine chamber. The mist collector collects and manages oil vapor and mist generated during operation.

This system helps minimize the dispersion of oil mist into the production area, improve working conditions, and contribute to a cleaner production environment.

Flexible dual operation modes

The machine is designed with two operation modes: Automatic and Manual.

In automatic mode, the operator loads the product into position, selects the appropriate program, and starts the cycle. The washing, rinsing, air-drying, and cycle-completion processes are carried out according to the preset sequence.

Manual mode allows operators to inspect individual mechanisms or perform necessary operations during machine setup, inspection, and maintenance.

The control buttons and display interface are provided in Vietnamese, making it easy for operators to control the machine, monitor its operating status, and respond to warnings during operation.

Key features of the engine parts washing machine

The engine parts washing machine is designed with multiple features to improve cleaning performance and operational efficiency in industrial production environments. Its integrated systems work together to enhance cleaning effectiveness, reduce cleaning solution consumption, minimize labor requirements, and support safe operation.

- The machine uses a water-based oil cleaning solution. Depending on the selected configuration, a heating system can be installed to enable hot-water washing at approximately 70°C. The machine is used to clean engine parts at the loading section before they are transferred to the assembly area.

- The machine is equipped with an engine parts fixture that continuously rotates the parts during the washing and air-drying cycles, helping achieve more effective cleaning while significantly reducing manual labor.

- The pump and filtration system, 3-bag filter system, and Oil Skimmer help minimize filter clogging caused by oil and enable cleaning solution recirculation. This reduces cleaning solution consumption and allows filters to be replaced easily. Depending on the machine configuration, filters can be replaced while the machine is operating. An automatic filter-clogging warning system also improves operational reliability.

- The air blow-off system automatically dries the parts after washing. The mist collector collects oil mist and vapor, helping improve working conditions and maintain a cleaner surrounding environment.

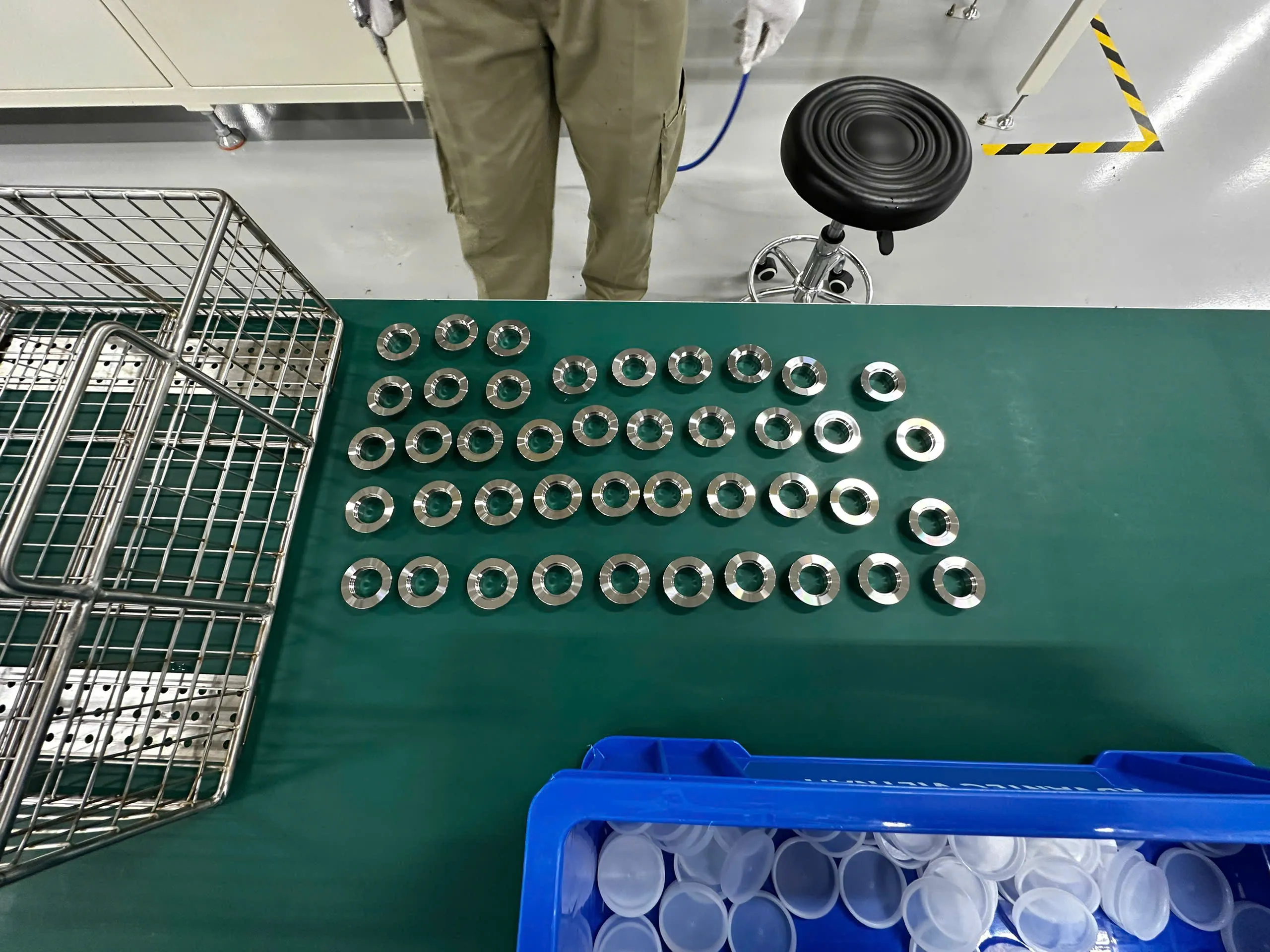

Applications of the engine detail washing machine

The machine can be used in various production processes where parts need to be cleaned before assembly or before being transferred to the next production stage, including:

• Cleaning automotive and motorcycle engine parts.
• Washing machined mechanical components.
• Removing oil and grease from metal components.
• Cleaning parts before assembly.
• Cleaning products after CNC machining.
• Cleaning components before quality inspection.
• Integration into industrial production and assembly lines.

The engine detail washing machine is an effective solution for businesses looking to increase productivity and automate the cleaning process in industrial manufacturing. The combination of high-pressure washing, cleaning solution filtration and recirculation, Oil Skimmer, rotating fixtures, heating, air drying, and Mist Collector enables stable and consistent cleaning performance while significantly reducing manual handling. The machine can be designed and customized according to specific products and integrated with other automated systems within the production line. Selecting the appropriate configuration helps optimize cleaning efficiency, reduce cleaning solution consumption, and meet the actual requirements of each production process. If you would like to learn more about the engine detail washing machine or other CNC machining and automated industrial equipment, please contact CNC VINA for professional consultation and the latest quotation.
