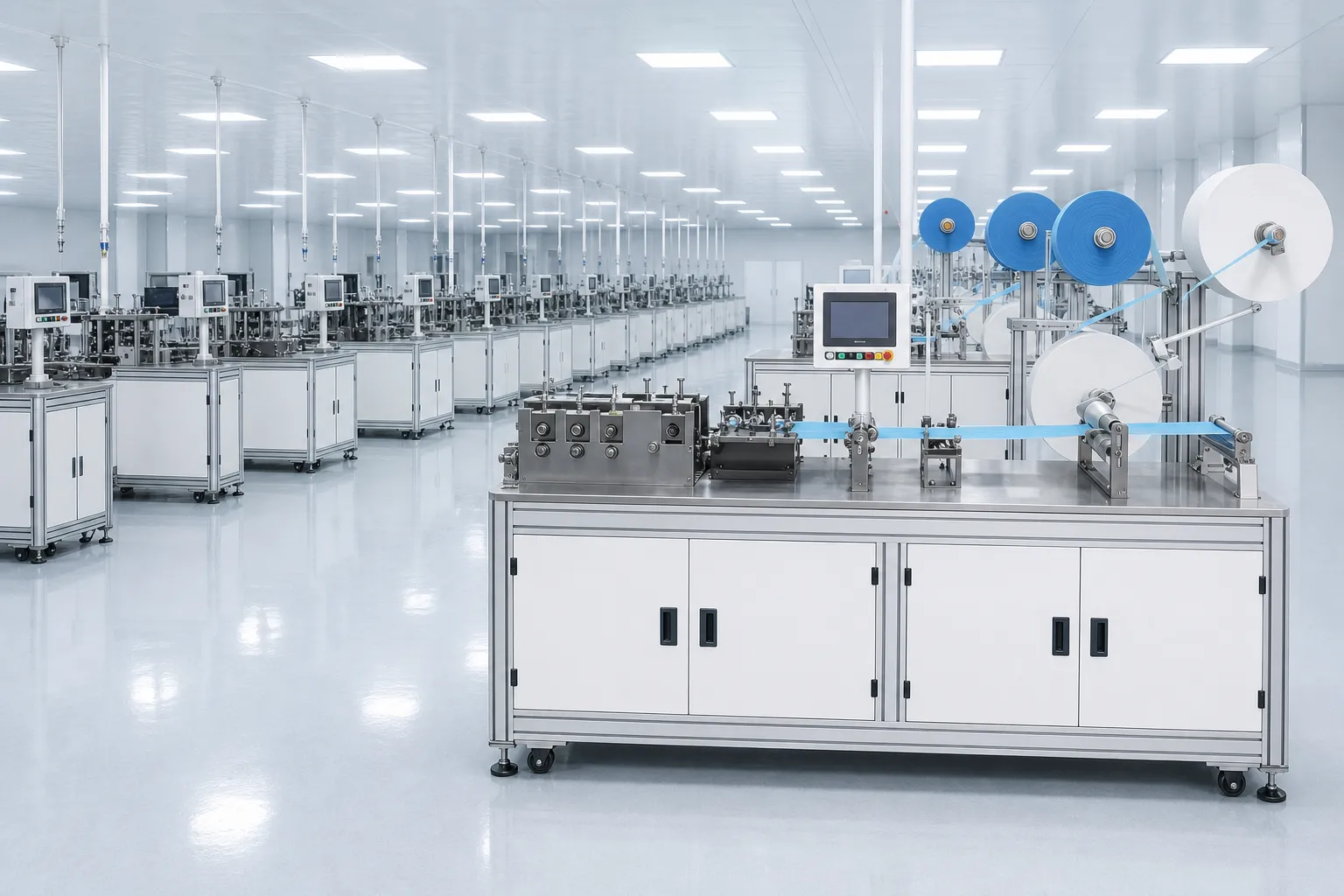

Medical mask production line made in Vietnam

The medical mask production line designed and manufactured by CNC-VINA is configured according to each business’s specific requirements for product type, production capacity, and level of automation. The system can include a medical mask body welding machine, automatic or semi-automatic earloop welding machines, a mask blank feeding system, and supporting modules such as inspection, sterilization, packaging, and finished-product boxing. With a mask body production capacity of up to 100–120 pieces per minute, businesses can select the appropriate number of earloop welding machines to balance production capacity across different stages of the line. CNC-VINA not only supplies individual machines but also provides complete design, manufacturing, and integration of production lines based on the actual factory layout and production process. As a Made-in-Vietnam solution, the system enables businesses to benefit from convenient site surveys, installation, commissioning, operator training, equipment maintenance, and future upgrades.

What does the CNC-VINA medical mask production line include?

An automated medical mask production line typically consists of multiple modules, each responsible for a specific production stage, rather than relying on a single piece of equipment. Depending on the mask type, target production volume, and required level of automation, CNC-VINA can design configurations ranging from standalone machines to integrated systems connecting multiple production stages. A basic configuration may include a mask blank forming or mask body welding machine, earloop welding machines, and a blank feeding and transfer system, with additional modules for inspection, sterilization, and packaging. Dividing the production line into independent modules allows businesses to select equipment according to their current production requirements and add additional machines as production volume increases.

Automatic medical mask body welding machine

The automatic medical mask body welding machine performs key production processes, including material feeding and positioning, pleat forming, material layer welding, and cutting the material into individual mask bodies according to preset dimensions. The machine uses ultrasonic welding technology to create weld seams on nonwoven materials without the need for sewing threads. Guiding and pleat-forming mechanisms help maintain the relative position of the material layers throughout the feeding and forming process. After the forming and welding processes are completed, the material is cut into individual mask blanks and transferred to the earloop welding stage. Depending on the product requirements, dimensions, and materials used, the machine configuration can be adjusted to meet specific production parameters.

According to the reference configuration, the machine can achieve a production capacity of 80–120 pieces per minute. When designing a complete production line, the actual line capacity should be calculated in coordination with the capacity of the earloop welding machines and downstream production stages.

Automatic medical mask earloop welding machine

The automatic medical mask earloop welding machine is used to weld earloops onto both sides of the mask body after the mask blanks have been formed and cut into individual pieces. The machine uses a blank feeding system and positioning mechanism to move each mask to the welding position, where the earloops are attached using ultrasonic welding technology.

An automatically controlled elastic earloop feeding mechanism helps regulate the length and positioning of the earloops during operation. The system can also be configured with an automatic mask blank feeding function, depending on the requirements of the production line. With the reference configuration, the machine can achieve a production capacity of approximately 35–40 pieces per minute and weld both earloops within the same cycle. When combined with a higher-capacity mask body welding machine, businesses can deploy multiple earloop welding machines operating in parallel. This configuration helps balance production capacity between different stages and prevents the mask body welding machine from operating faster than the downstream earloop welding process, which could otherwise become a bottleneck for the entire production line.

Semi-automatic medical mask earloop welding machine

For businesses that do not need to invest in a fully automated production line immediately, the semi-automatic medical mask earloop welding machine is a suitable option for reducing manual operations while maintaining investment flexibility. The operator places the mask body in the welding position and activates the cycle, after which the machine performs the earloop welding process automatically. The semi-automatic configuration offers a compact design, easy installation, and flexible operation. It can be operated as a standalone machine or integrated with a mask body welding machine. According to the reference configuration, the machine can achieve a production capacity of approximately 20–25 pieces per minute, making it suitable for medium-scale production or businesses looking to gradually transition from manual processes to automated production.

Modules that can be integrated into the production line

In addition to mask body forming and earloop welding, the production line can be configured with additional modules, including a mask blank feeding system, product transfer conveyors, UV sterilization equipment, bagging and packaging machines, boxing systems, and inspection and rejection systems for non-conforming products.

Depending on the production process, these modules can be arranged in sequence or operated independently. A modular design allows businesses to avoid investing in the entire system from the beginning. Instead, they can start by automating the production stages that require the most improvement and gradually expand the system as production demand increases.

Technical features of the CNC-VINA medical mask production line

The CNC-VINA medical mask production line is designed to meet requirements for production capacity, operational stability, and continuous operation. Depending on the configuration, the system can incorporate mechanical, electrical, and pneumatic components suitable for each production stage, while allowing selected operating parameters to be adjusted according to the product type.

Ultrasonic welding technology

Ultrasonic welding technology is used at points where nonwoven materials need to be joined, including mask body welding and earloop welding. Ultrasonic welding heads imported from South Korea are selected according to the requirements of each machine configuration, helping maintain consistent welding performance during continuous operation.

Compared with conventional thread sewing, ultrasonic welding reduces certain mechanical operations involved in joining the material layers and is well suited to high-speed mask production.

Precision mechanical machining

The machine's mechanical components are designed and machined using CNC equipment to ensure dimensional accuracy and precise assembly positioning. Areas that come into direct contact with the products can be manufactured from stainless steel, making them suitable for hygiene and product safety requirements. Depending on the configuration and specific project requirements, the mechanical system can incorporate components from widely used industrial brands such as Delta, Panasonic, Mitsubishi, Omron, SMC, TBI, HIWIN, and Keyence.

Control system and operator interface

The machine is equipped with a PLC control system combined with an HMI interface, allowing operators to monitor and adjust essential operating parameters directly from the screen. The interface can be configured in either Vietnamese or English to facilitate machine operation and operator training. The system can also display warning messages and error history, enabling technicians to identify potential causes of faults more quickly during equipment inspection and maintenance.

Modular design and upgradeability

One of the key advantages of a modular design is the ability to adjust the production line configuration according to actual production volume. Instead of replacing the entire line when production requirements increase, businesses can add additional earloop welding machines or modules for blank transfer, inspection, and packaging to expand production capacity. CNC-VINA can conduct site surveys, recommend production layouts, and design suitable system configurations based on the available factory space, product requirements, and future expansion plans.

Reference technical specifications

The specifications below are provided for reference only. The actual configuration can be customized according to the mask type, product dimensions, materials used, and production capacity required by the business.

Automatic medical mask blank forming machine

Automatic medical mask earloop welding machine

Actual specifications may vary depending on the machine configuration, materials, product dimensions, and operating conditions.

Medical mask production process on an automated production line

A medical mask production line can be arranged in the following sequence: material feeding → pleat forming → mask body welding and cutting → blank transfer → earloop welding → inspection → packaging. Depending on the level of automation, certain stages can be directly connected using conveyors or an automatic blank feeding system. At the initial stage, material rolls are installed on the material feeding frame and guided through the feeding system. The material layers are aligned and maintained at the appropriate tension before entering the pleat-forming unit. The forming mechanism then creates the required pleats according to the product design before the material proceeds to the welding area.

During the mask body welding stage, the ultrasonic welding system creates bonded seams between the material layers and works together with the cutting mechanism to form individual mask blanks. The blanks are then transferred to the earloop welding machine either manually, by conveyor, or through an automatic blank feeding system, depending on the production line configuration. After the earloops are welded, the finished masks can proceed to an inspection stage before packaging. Inspection may include visual appearance, product dimensions, earloop positioning, weld strength, and other technical requirements specified by the product standards.

Should you invest in a medical mask production line?

The decision to invest in a medical mask production line should be based on the target production volume, product demand, desired level of automation, and the ability to balance production capacity across different stages. For businesses with stable, high-volume production requirements, automating mask body forming, earloop welding, and blank transfer processes can help reduce manual operations and maintain greater consistency throughout production. An important factor to consider is that the actual production capacity of the entire line does not depend solely on the capacity of the mask body forming machine. If the mask body machine can produce 100–120 pieces per minute but only one earloop welding machine with a capacity of 35–40 pieces per minute is used, the earloop welding stage may become the bottleneck of the entire system. Therefore, the number of earloop welding machines and the arrangement of each module should be calculated based on the target production volume rather than relying solely on the specifications of an individual machine.

For businesses that are just starting out or do not yet require high production volumes, a semi-automatic configuration or investment in individual modules can be a practical approach. As production volume increases, the system can be expanded by adding earloop welding machines, blank feeding systems, conveyors, or inspection and packaging equipment. In addition to production capacity, businesses should also evaluate the installation space, power supply, compressed air requirements, raw materials, operating personnel, maintenance requirements, and availability of replacement components before making an investment decision.

CNC-VINA – Medical Mask production line design and manufacturing in Vietnam

CNC-VINA has experience in the design and manufacturing of automated machinery, automation production lines, and customized manufacturing systems. For medical mask production lines, businesses can receive support throughout the entire process, from requirement assessment and configuration selection to layout design, machine manufacturing, installation, commissioning, and operator training. Rather than providing only a fixed configuration, CNC-VINA can customize the production line based on the mask type, product dimensions, target production volume, factory layout, and desired level of automation. Modules such as mask body welding machines, earloop welding machines, blank feeding systems, conveyors, inspection systems, and packaging equipment can be integrated into a complete solution that matches the actual production process.

After delivery and commissioning, CNC-VINA provides a 12-month warranty and 24/7 technical support to assist businesses during the equipment implementation and production ramp-up process. Businesses can also work with the technical team to improve, modify, or expand the production line as production requirements change.

Contact CNC-VINA for medical mask production line consultation

If your business is looking for a Made-in-Vietnam medical mask production line, CNC-VINA can recommend a suitable configuration based on production volume, product type, and the required level of automation. Customers can register for a factory visit to see CNC-VINA's Made-in-Vietnam mask making machines in operation, discuss system configurations, and evaluate the proposed implementation plan before making an investment decision. CNC-VINA provides support throughout the entire process, including design, manufacturing, system integration, installation, commissioning, operator training, and equipment maintenance. Businesses can choose to invest in individual modules or implement a complete production line, with the option to expand production capacity as demand increases. CNC-VINA also works with relevant partners and parties to help customers access equipment solutions that are suitable for their actual production requirements.
