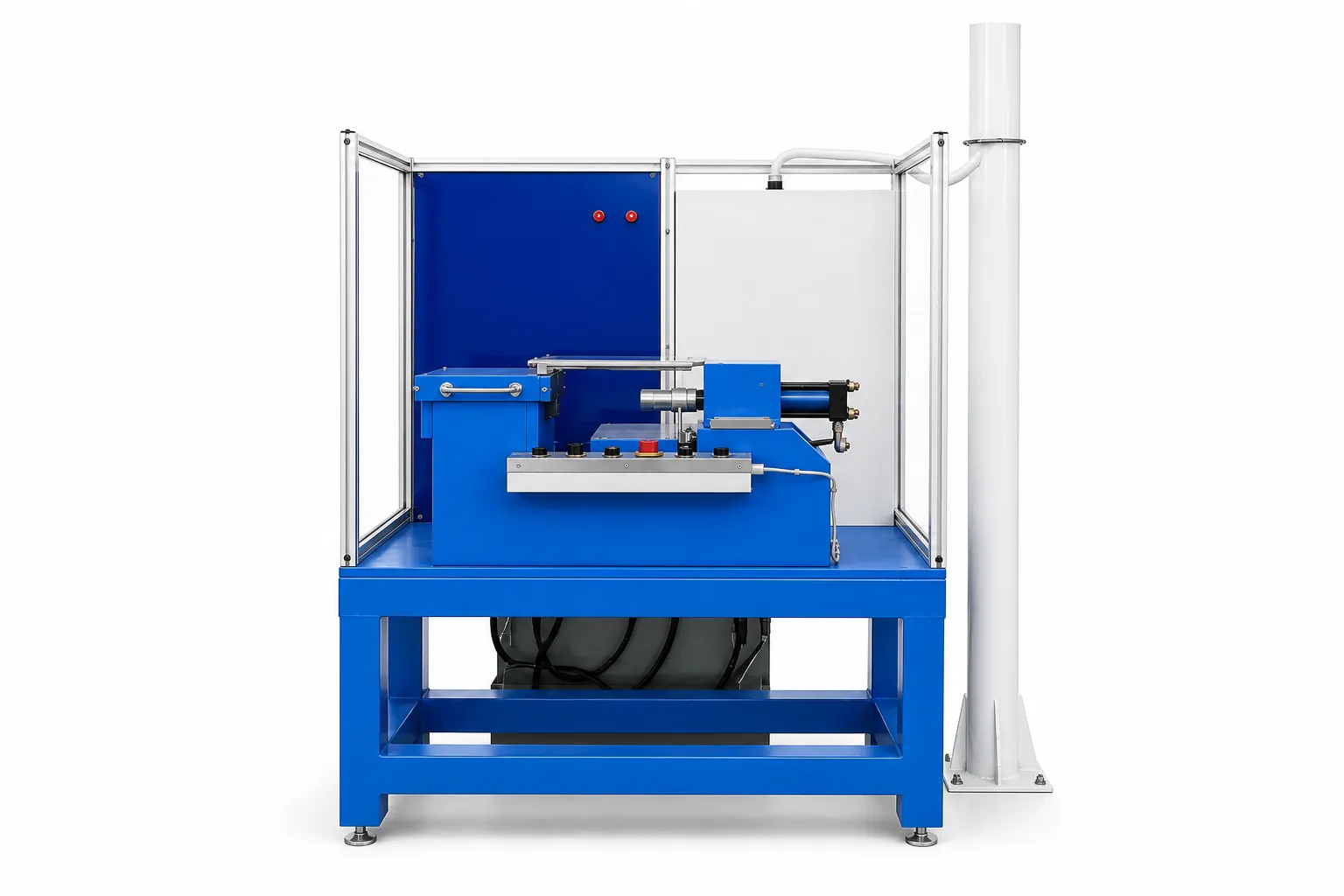

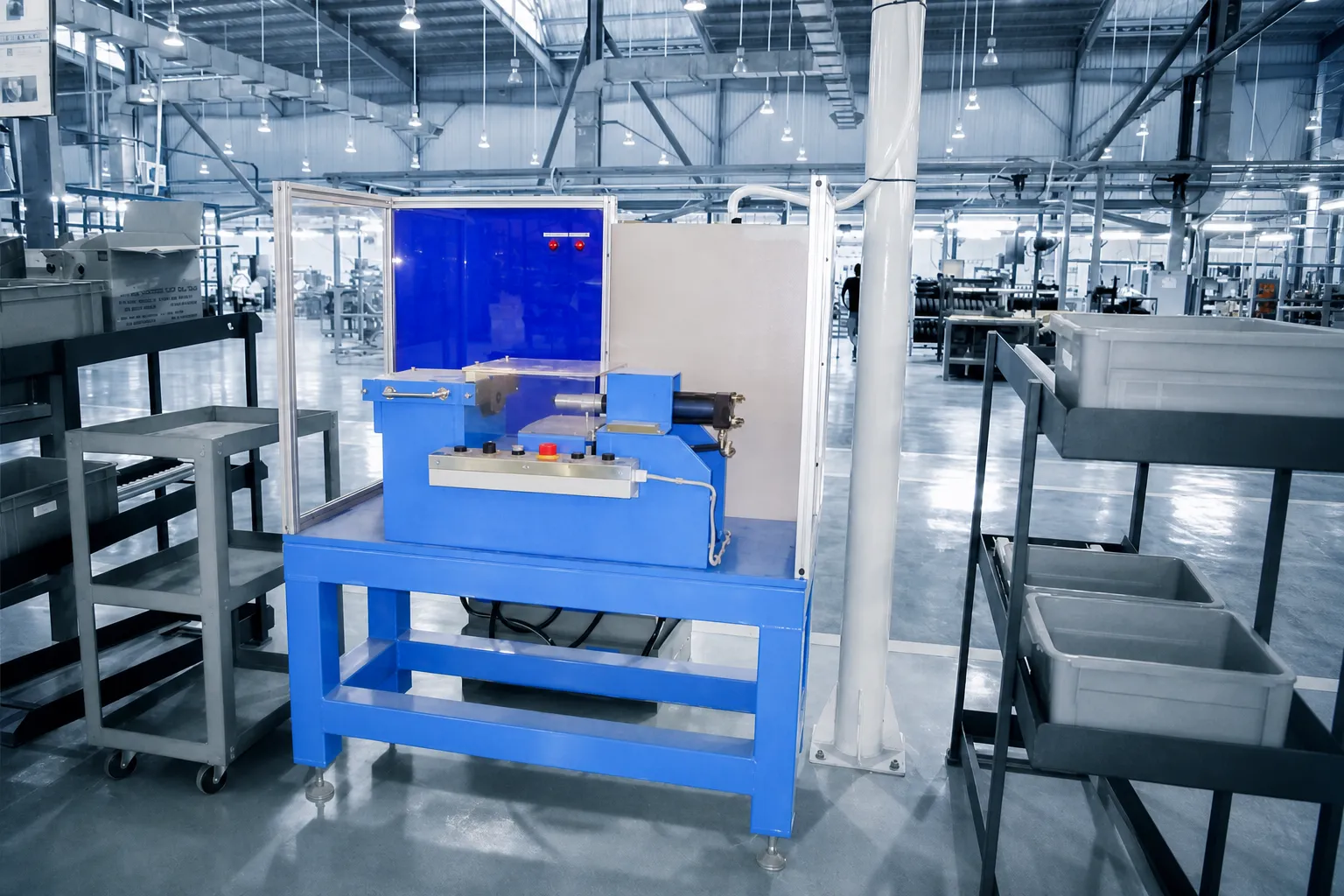

Steering column ball press

The steering column ball press is a specialized piece of equipment used in the steering head assembly process of motorcycles. The machine uses a hydraulic pressing mechanism to generate high and stable pressing force, ensuring that the bearings are accurately inserted into the required position according to technical specifications. In addition, the mold and positioning fixture system securely holds the workpiece in place, while sensors help control the pressing position and stroke. With adjustable pressing force, pressing time, and stroke, the machine ensures consistent assembly and minimizes potential errors during the process. The equipment can operate in either automatic or semi-automatic mode, making it suitable for various production models and motorcycle assembly lines. Using a dedicated pressing machine also helps reduce manual operations, improve productivity, and maintain consistent product quality. So, what are the structure, operating process, and key technical features of the steering head bearing press machine? Let’s explore them in detail with CNC VINA in the following article.

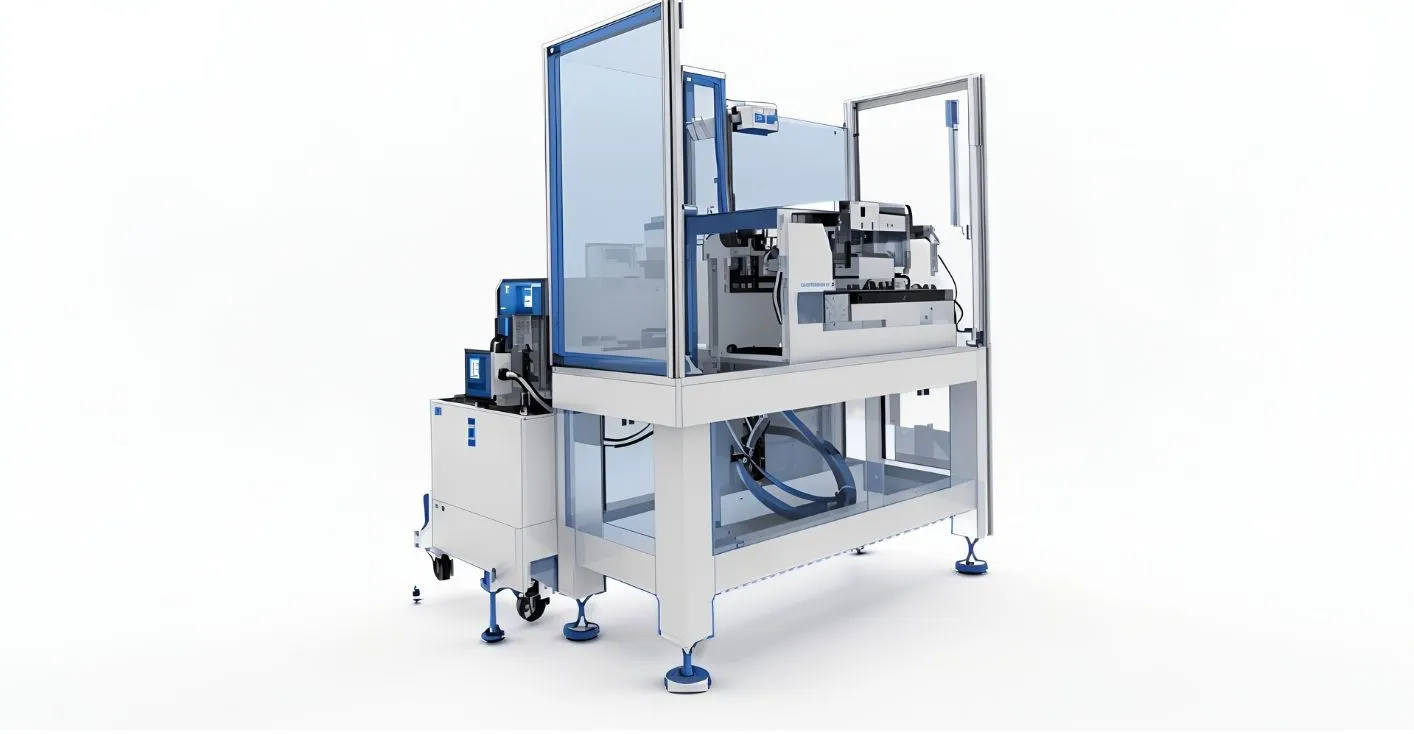

Technical specifications of the steering column ball press

What Is the structure of the steering head bearing press machine?

The Steering Head Bearing Press Machine is specially designed for pressing bearings into the steering head during the motorcycle assembly process. The machine uses a hydraulic pressing mechanism to generate high and stable pressing force, combined with a mold and sensor system to control the position and stroke during the pressing process.

Machine frame structure

The machine frame is the main load-bearing component, supporting the hydraulic system, pressing mechanism, mold, and control equipment. Since the machine generates high pressing force during operation, the frame must have a robust structure and high rigidity to minimize vibration and deformation under load. A stable frame structure enables the pressing mechanism to move accurately while maintaining the correct relative position between the pressing head, mold, and workpiece during each cycle.

Hydraulic pressing system

The hydraulic pressing system is responsible for generating and transmitting pressing force to the pressing mechanism, ensuring that the bearing is accurately inserted into the required position on the steering head. Compared with manual pressing methods, the hydraulic mechanism provides greater and more stable pressing force, making it suitable for components requiring a tight fit. The steering column ball press has a pressing capacity ranging from 50–200 tons of force and a working pressure of 1,500 psi, depending on the machine configuration and the requirements of the specific process.

Mold and positioning fixture

The mold and positioning fixture are responsible for securely holding the steering head and bearing in place throughout the pressing process. Before the cycle begins, the workpiece is correctly positioned on the fixture to ensure that the bearing and the installation position are precisely aligned with the pressing head. Once the workpiece is securely positioned, the pressing force is applied directly to the required location, minimizing the risk of bearing misalignment, tilted pressing, or improper installation that fails to meet technical requirements.

Pressing mechanism

The pressing mechanism is the component that directly transfers force from the hydraulic system to the bearing and steering head. When the cycle is activated, the pressing mechanism moves according to the preset stroke and applies force to the bearing to insert it into the required position. Controlling the movement direction and stroke of the pressing mechanism helps ensure a stable and consistent pressing process across products.

Sensor system

The sensor system is responsible for detecting the position of the pressing mechanism and assisting in stroke control during operation. The machine uses proximity sensors to detect the limit positions of the pressing mechanism, thereby controlling the end point of the stroke according to the preset parameters. This system helps prevent the pressing mechanism from stopping before reaching the required stroke or moving beyond the specified position, contributing to greater consistency in the assembly process.

Control system

The control system allows the operator to start and stop the machine, select the operating mode, and control the pressing cycle. The machine can be designed to operate in automatic or semi-automatic mode, depending on production requirements. The PLC is responsible for controlling and coordinating signals throughout the cycle, while the push-button control system enables the operator to easily operate and monitor the machine during operation.

Pressing force and time adjustment system

The pressing force adjustment system allows the operator to set the appropriate pressing load according to the requirements of each type of component and assembly process. Proper force adjustment helps prevent insufficient pressing force, which may result in the bearing not being properly installed, or excessive pressing force that could damage the component. In addition to pressing force, the pressing dwell time can also be set using a timer. By combining control of pressing force, stroke, and pressing time, the machine can maintain a stable operating cycle and achieve greater consistency among products.

Operating process of the steering column ball press

The actual operating process may be adjusted depending on the machine configuration and the requirements of each production line. For the steering head bearing press machine, the basic operating steps can be described as follows:

Step 1: Inspect the machine before operation

Before starting the machine, the operator checks the power supply, hydraulic system, pressing mold, positioning mechanism, and sensors. The working area should also be inspected to ensure that there are no obstacles or incorrectly positioned components.

Step 2: Set the pressing parameters

Set the pressing force, stroke, and pressing time according to the technical requirements of the product. The pressing force should be adjusted according to the type of bearing and steering head being processed, while the stroke is controlled through the proximity sensor system.

Step 3: Place the components into the mold

Place the steering head and bearing in the correct positions on the mold and fixture. Check the centering position and stability of the components before starting the pressing cycle.

Step 4: Activate the pressing cycle

Once the components are properly positioned, the operator starts the cycle using the control buttons or automatic control system. The pressing mechanism moves downward and applies force to the bearing, pressing it into the correct position on the steering head.

Step 5: Monitor the pressing process

During the pressing process, the sensor system monitors the position and stroke of the pressing mechanism. When the preset position is reached, the pressing mechanism stops or moves to the next step of the cycle. This control helps prevent insufficient pressing, excessive pressing, or incorrect positioning.

Step 6: Complete the cycle and remove the product

After the preset pressing time is completed, the pressing mechanism returns to its initial position. The operator removes the pressed component from the mold and performs a preliminary inspection of the bearing installation position before transferring it to the next process.

Step 7: Inspect and repeat the cycle

If the product meets the requirements, a new component is placed into the mold to begin the next cycle. If any abnormality is detected in the position, pressing force, or stroke, the machine should be stopped and inspected before production continues.

Key features of the steering head bearing press machine

The steering column ball press is designed to provide precise control of the pressing process, ensuring that the bearing is installed in the correct position while minimizing potential defects during production. The combination of the sensor system and pressing mechanism enables stable machine operation while helping control important parameters throughout each pressing cycle. Some of the machine's key features include:

• The machine frame and pressing mechanism are designed with high rigidity, helping minimize vibration during operation and maintain stability throughout the pressing process.
• The machine can operate in automatic or manual mode depending on production requirements. Automatic mode is suitable for continuous production, while manual mode is convenient for machine inspection, adjustment, and maintenance.
• The sensor system helps detect and control the pressing stroke, minimizing insufficient pressing, excessive pressing, or incorrect positioning. This ensures that the bearing is installed in the correct position according to the product's technical requirements.
• Proper control of the pressing force ensures that the bearing is securely fixed in its installation position, minimizing looseness or misalignment after the pressing process.
• Precise control of the position and pressing force helps ensure greater consistency among assembled components, contributing to reduced vibration, shaking, or unstable operation during use.

Technical characteristics of the steering head bearing press machine

The steering head bearing press machine is equipped with adjustment mechanisms and a control system to regulate pressing force, stroke, and pressing time according to the requirements of each product. Its main technical characteristics include:

• The pressing load can be adjusted using a manual adjustment valve, allowing the operator to set the appropriate pressing force according to the technical requirements of each process and product type.
• A proximity sensor system is used to detect the position and stroke limits of the pressing mechanism. This enables the machine to control the pressing depth and minimize insufficient pressing or excessive stroke.
• The pressing dwell time is set using a timer, helping ensure a stable and consistent pressing process across cycles.
• The machine integrates a PLC to control and coordinate operations throughout the pressing cycle. The push-button control system allows the operator to easily start and stop the machine and select the operating mode.
• Signals from the sensors are used to monitor the status of the pressing mechanism, helping detect cases where the pressing process has not met the required conditions and reducing defective products during production.

Applications of the steering head bearing press machine in electric motorcycle assembly lines

The motorcycle steering head bearing press machine, designed and manufactured by CNC VINA, is a specialized piece of equipment used for assembling the steering head assembly in an electric motorcycle assembly line. The machine is used in manufacturing facilities and motorcycle assembly lines to accurately press bearings into position with appropriate pressing force and high stability.

• The machine is used to press bearings into the designated position on the steering head according to the technical requirements of each motorcycle model. The hydraulic pressing mechanism generates sufficient and stable pressing force, ensuring that the bearing is securely installed while minimizing misalignment or improper installation.
• The machine is suitable for pressing operations in motorcycle production and assembly lines. Using dedicated equipment helps reduce manual operations, maintain consistency between products, and improve assembly productivity.
• The pressing process is controlled through the pressing force and stroke of the machine mechanism, helping minimize defects such as insufficient pressing, excessive pressing, or incorrect positioning. As a result, the quality of the steering head assembly can be maintained consistently throughout production cycles.
• The machine can be designed to meet the specific requirements of each production line and process. Depending on the level of automation, the equipment can be integrated with part feeding systems, positioning mechanisms, inspection systems, or other automated equipment to create a complete assembly process.

The steering column ball press is a suitable solution for motorcycle manufacturers and assembly companies looking to improve productivity and control the quality of their assembly processes. With its hydraulic pressing mechanism, positioning mold, and sensor system, the machine helps maintain stable control of pressing force, stroke, and pressing time. Its automatic or semi-automatic operation provides businesses with flexibility in selecting a production method that suits the scale and requirements of each assembly line. The use of dedicated equipment also helps reduce manual operations, minimize misalignment during bearing installation, and improve consistency among finished products. In particular, the machine can be designed and customized according to each company's product specifications, production capacity, and desired level of automation. With experience in machine design and manufacturing, CNC VINA can provide consultation on suitable pressing machines and automation solutions for specific production processes.If your company is looking for a steering head bearing press machine or an automation solution for a motorcycle assembly line, contact CNC VINA for detailed consultation.
