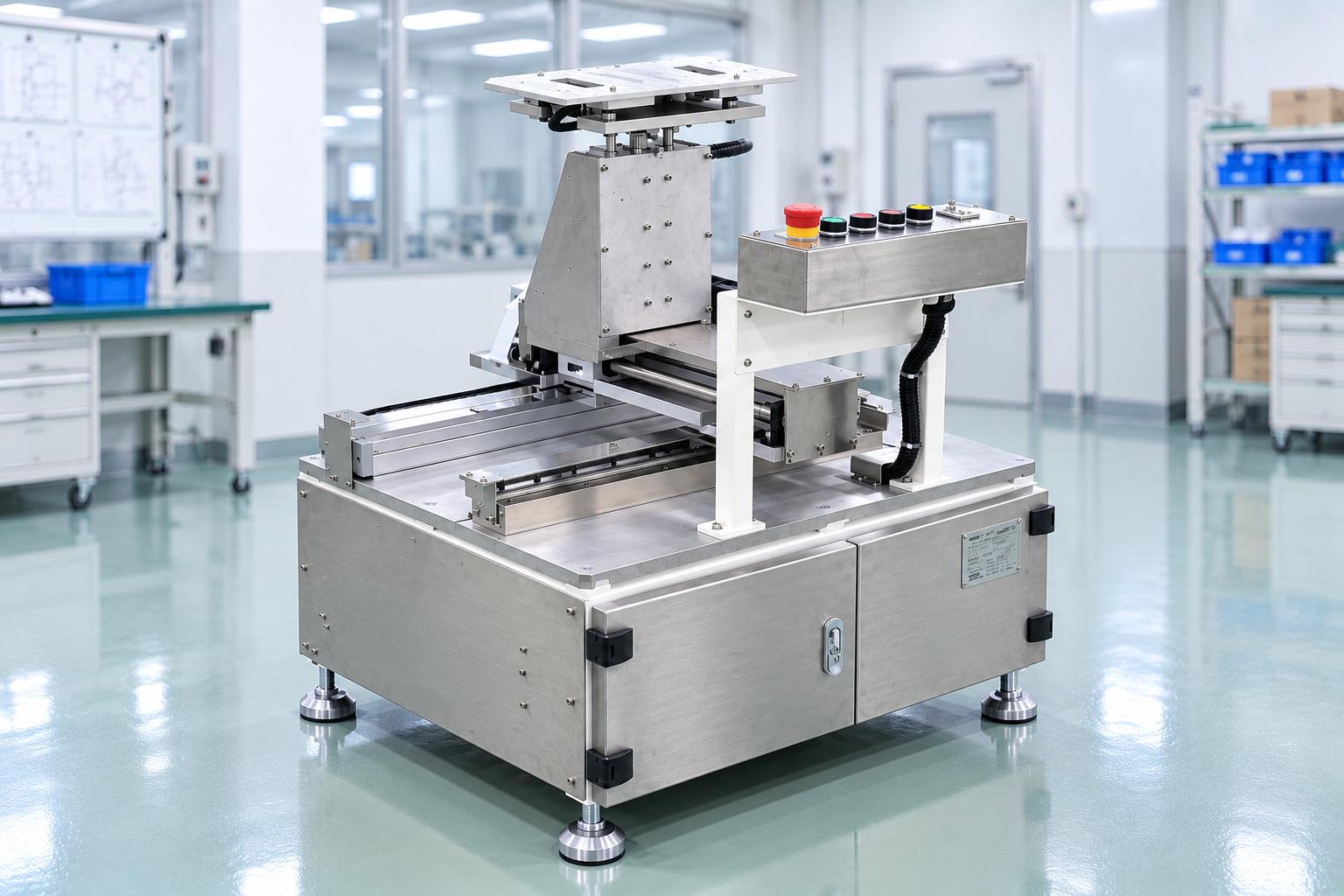

The automatic XYZ positioning table

The automatic XYZ positioning table is an automation solution for processes that require products or fixtures to be moved to multiple positions according to a repeatable sequence. The equipment is suitable for production lines with multiple working points, applications that require position changes for different product models, or processes that need to work in coordination with other manufacturing equipment. In the electronics industry, the XYZ positioning table can be integrated with dispensing heads, material dispensing units, inspection mechanisms, or assembly equipment to meet specific production requirements. By storing programs and changing fixtures, manufacturers can use the same platform for multiple product models instead of investing in dedicated equipment for each model. CNC VINA can design the positioning table according to the product dimensions, working area, load capacity, and actual process requirements of the production line.

What is an automatic XYZ positioning table?

An automatic XYZ positioning table is equipment that uses three axes of motion—X, Y, and Z—to control the position of a fixture table, product, or process head within the working area. The three axes move according to programmed data in the control system, allowing the machine to move to specific coordinates or follow a defined motion path. Depending on the application, the table can be used to move products to inspection points, position fixtures for assembly operations, or control process heads for dispensing or material application. The system can also store multiple programs for different product models. The XYZ positioning table can operate independently or communicate with external equipment through control signals. When changing products, the operator can replace the fixture, select the corresponding program, and check the origin position before starting the production cycle.

Structure and main functional components of the XYZ positioning table

X-Y-Z three-axis motion system

The motion system consists of three linear axes that work together to move the fixture table to designated working coordinates. Each axis is controlled according to the programmed sequence, allowing the system to execute a series of positions or motion paths suitable for the specific process.

Fixture table and product positioning area

The fixture table is designed according to the actual product shape and dimensions. One configuration can accommodate two fixture positions, allowing the machine to alternate between products, reduce waiting time, and enable the operator to load and unload one product while the machine continues processing the other.

Product and fixture detection sensors

Sensors are used to detect product presence, identify the correct fixture, and verify that the required conditions are met before the machine starts. These interlocks help prevent incorrect program selection or operation when the product is not properly positioned.

Control system and operator interface

The machine uses an industrial controller and a multi-axis motion control system. Depending on customer requirements, the PLC can be supplied by Keyence, Mitsubishi, Siemens, or an equivalent manufacturer. The operator panel includes functions such as start, stop, homing, error reset, emergency stop, and program selection.

Electrical cabinet and process equipment integration

The electrical cabinet integrates the control power supply, protection devices, motion controller, and signal interface points. The machine can exchange ready, start, and process-complete signals with a dispensing unit or other external equipment, enabling the entire process to operate as a synchronized cycle.

Technical specifications of the automatic XYZ positioning table

The specifications below are based on an actual machine configuration. For different applications, CNC VINA can adjust the dimensions, stroke, load capacity, speed, and control system according to the requirements of each project.

The specifications above are for reference only and do not represent a fixed configuration for all machines. Upon receiving the application requirements, CNC VINA can recalculate the axis strokes, load capacity, speed, and fixture structure based on the product and the process to be automated.

Operating principle of the automatic XYZ positioning table

The automatic XYZ positioning table operates based on a programmed coordinate sequence configured for each product. Once the product is placed in the fixture and all required conditions are confirmed, the X, Y, and Z axes work together to move the product or process head to each designated working position.

The basic operating sequence includes:

1. The operator places the product in the fixture and selects the corresponding program.
2. Sensors check product presence and confirm that the system is ready to operate.
3. The system moves the axes to the home position before starting the cycle.
4. The fixture table moves along the X and Y axes while the Z axis adjusts the working height.
5. When the programmed position is reached, the machine exchanges signals with the process head or external equipment to perform the required operation.
6. After completing one position, the table moves to the next programmed coordinate.
7. Once the entire cycle is completed, the table returns to the standby position or proceeds to the next cycle.

With a two-position fixture configuration, the system can process two products alternately when the sensor conditions and programs allow. This arrangement helps maximize machine utilization and reduce waiting time between cycles.

Applications of the XYZ positioning table in industrial production

The industrial XYZ positioning table is suitable for processes that require precise position control but do not necessarily require a multi-axis industrial robot. Using a three-axis motion table allows manufacturers to build a more compact system for operations with relatively defined working areas and motion paths. In the electronics industry, the equipment can be used in various processes depending on the integrated process head and fixture. Applications may include dispensing, material application, inspection, assembly, and other operations that require controlled movement to predefined positions.

Dispensing and material application

When integrated with a dispensing head or material dispensing unit, the XYZ positioning table can move the process head to multiple positions on the product according to programmed coordinates. The system is suitable for products that require dispensing at multiple points, along multiple paths, or at positions with different spacing. Program-based motion control reduces dependence on manual operation and helps maintain consistent dispensing positions from cycle to cycle.

Positioning for assembly

The three-axis positioning table can move fixtures or products to designated positions for assembly, adjustment, or light mechanical operations. Depending on the application, the system can also be integrated with grippers, pressing mechanisms, screwdriving units, or other process equipment.

Inspection and measurement

The XYZ positioning table can also be used to move products to fixed inspection points. When combined with sensors or measurement equipment, the system can perform inspections at multiple programmed positions.

Production of multiple product models

For production lines handling multiple product models, manufacturers can create separate position data sets for each product. When changing models, the operator can replace the fixture and select the corresponding program instead of replacing the entire machine.

Integration into automated production lines

The positioning table can operate as an independent module or communicate with other equipment through I/O signals. It can receive a product-ready signal, initiate the process cycle, and send a completion signal to coordinate with upstream or downstream processes.

Key features of the automatic XYZ positioning table

The three-axis positioning equipment is designed for processes requiring high positioning accuracy, repeatability, and product changeover flexibility. Depending on the project, the following features can be configured:

• Automatic X, Y, and Z-axis movement with stroke and speed selected according to the application.
• Multiple motion programs can be stored for different product models.
• Fixtures can be replaced and the corresponding program selected during product changeover.
• Two fixture positions can be configured to process products alternately.
• Sensors can be used to verify the product, fixture, and system-ready conditions.
• Communication with dispensing units, inspection equipment, or other external process equipment.
• Standalone operation or integration into an automated production line.
• Stroke, load capacity, fixture, sensors, and control programs can be customized according to project requirements.

An important advantage is that manufacturers do not need to use the same configuration for every product. Motion parameters and fixture structures can be designed based on product dimensions, working area, load capacity, and the required process.

Automatic XYZ positioning table by CNC VINA

CNC VINA designs and manufactures automatic XYZ positioning tables and customized automation equipment for industrial production. Depending on the product and process requirements, the system can be configured with different strokes, load capacities, fixture positions, fixtures, sensors, and control programs. For electronics manufacturing, the XYZ positioning table can serve as an auxiliary module for dispensing, material application, inspection, positioning, or assembly processes. When integration with other equipment is required, CNC VINA can design the appropriate communication and interlock system to create a synchronized automated process.

If your company is looking for an industrial XYZ positioning table or electronics manufacturing machines and production lines tailored to specific product dimensions, axis strokes, or process requirements, CNC VINA can provide consultation and design the equipment according to your actual production line.
